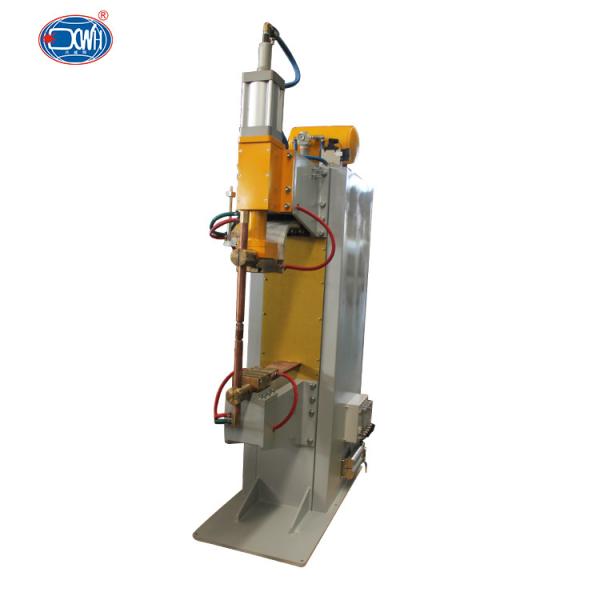

Single Head 200KVA AC Stationary Spot Welding Machine CE Approved

Brand Name : XWH

Model Number : DTN

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD3000-USD5000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets/month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Product name : Resistance Water Refrigerated Spot Welders Stationary Spot Welding Machine

Welding Material : stainless steel , Galvanized steel , iron

Rated Duty Cycle : 50%

Frequency : 50HZ/60HZ

Rated Capacity : 25KVA-400KVA

Welding Head : Single Head

Production Time : 25-35 days

Usage : Spot Welding

Contact Now

Resistance Water Refrigerated Spot Welders Stationary Spot Welding Machine


Product



FEATURE




. High quality and high efficiency welding power,power factor up to 98%,3 phase input load balancing
. The fuselage is designed with high quality steel plate and optimized mechanical structure,ensuring stable welding quality
. International famous brand components make the overall quality of the welder reach the first-class level
. Can store 60 sets of welding specifications, Large LCD screen interface,with chinese and english switch disply
. Widely used in areospace,automobile and automobile parts manufacturing,new energy and power battery and other special areas of
high quality welding requirements



Parameter List

Item
Model
DN-25
DN-35
DN-50
DN-75
DN-100
DN-150
DN-200
Rated capacity KVA

25

35

50

75

100

150

200
Rated Primary voltage
V

380

380

380

380

380




380

380
Rated frequency
Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60
Maximum welding input
KVA

38

54

70

146

216

340

450
Rated duty cycle
%

50

50

50

50

50

50

50
Arm length
mm
340
380
380
380
380
450
450
Maximun compression
N

2500

4700

4700

7300

7300

12000

12000
Electrode stroke
mm

60

80

80

80

80

100

100
Welding capability
Low carbon steel
mm


2.0+2.0


2.5+2.5


3.0+3.0


4.0+4.0


4.5+4.5


5.0+5.0


6.0+6.0


Single Head 200KVA AC Stationary Spot Welding Machine CE Approved

Single Head 200KVA AC Stationary Spot Welding Machine CE Approved
Why choose this our product?

With this welding product, you can experience many advatages. Pneumatic AC Manul Spot Welder Long Arm Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
