New Top 10 Ac Dc Welder Cnc Rebar Wire Mesh Welding Plant Machine

New Top 10 Ac Dc Best China Welder Cnc Rebar Wire Mech Welding Plant Machine


Product Description

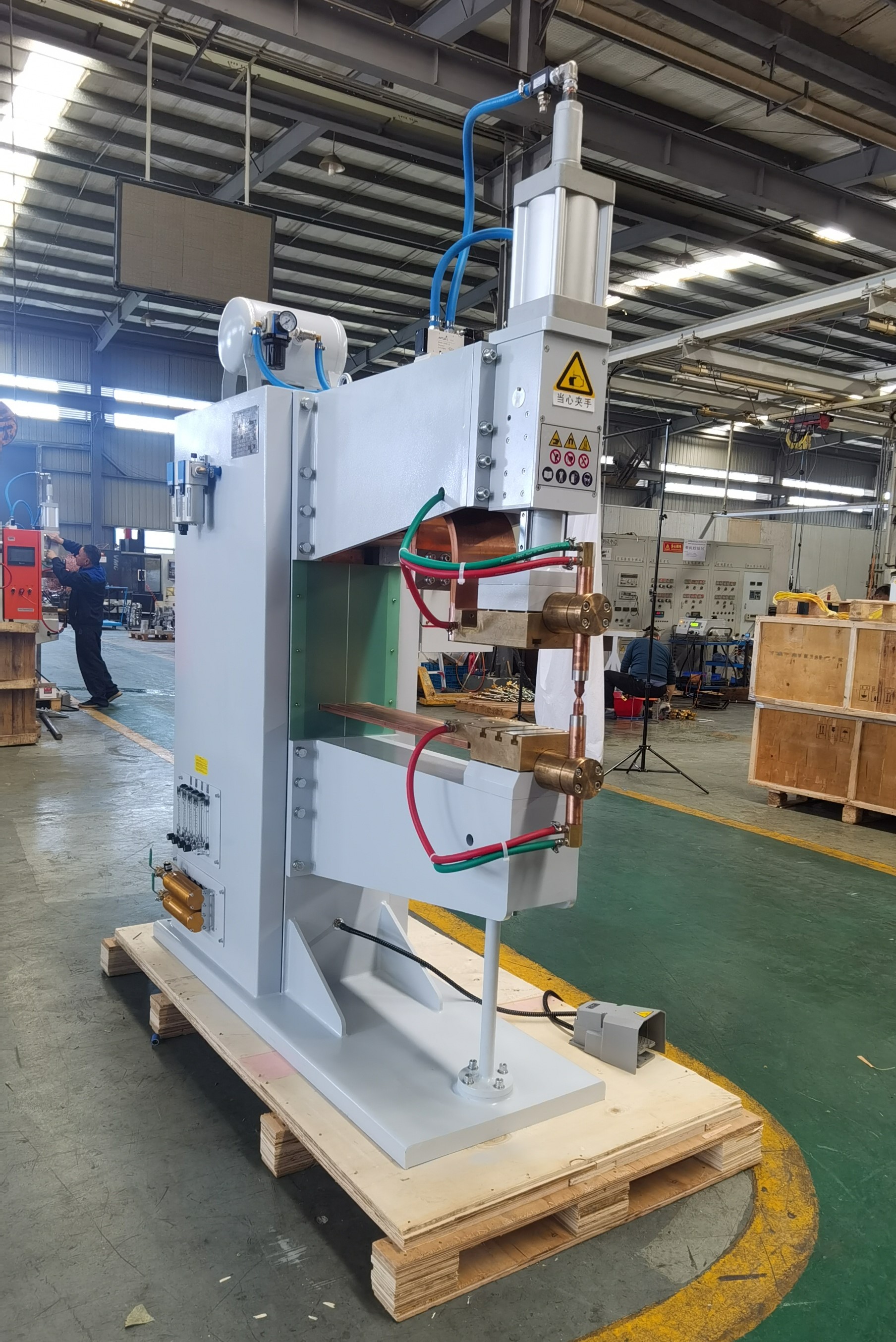

Medium frequency fixed spot welding machine is composed of body, welding transformer, water circuit system, air circuit system, microcomputer resistance welding machine controller, foot switch, etc.

The standard fixed spot welding machine is match with microcomputer resistance welding controller. The electrical base plate of the main circuit component is installed in the welding machine body, and the controller is hung on the left side of the welding machine.


Technical Parameters

Advantages

(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;

(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;

(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;

(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;

(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.

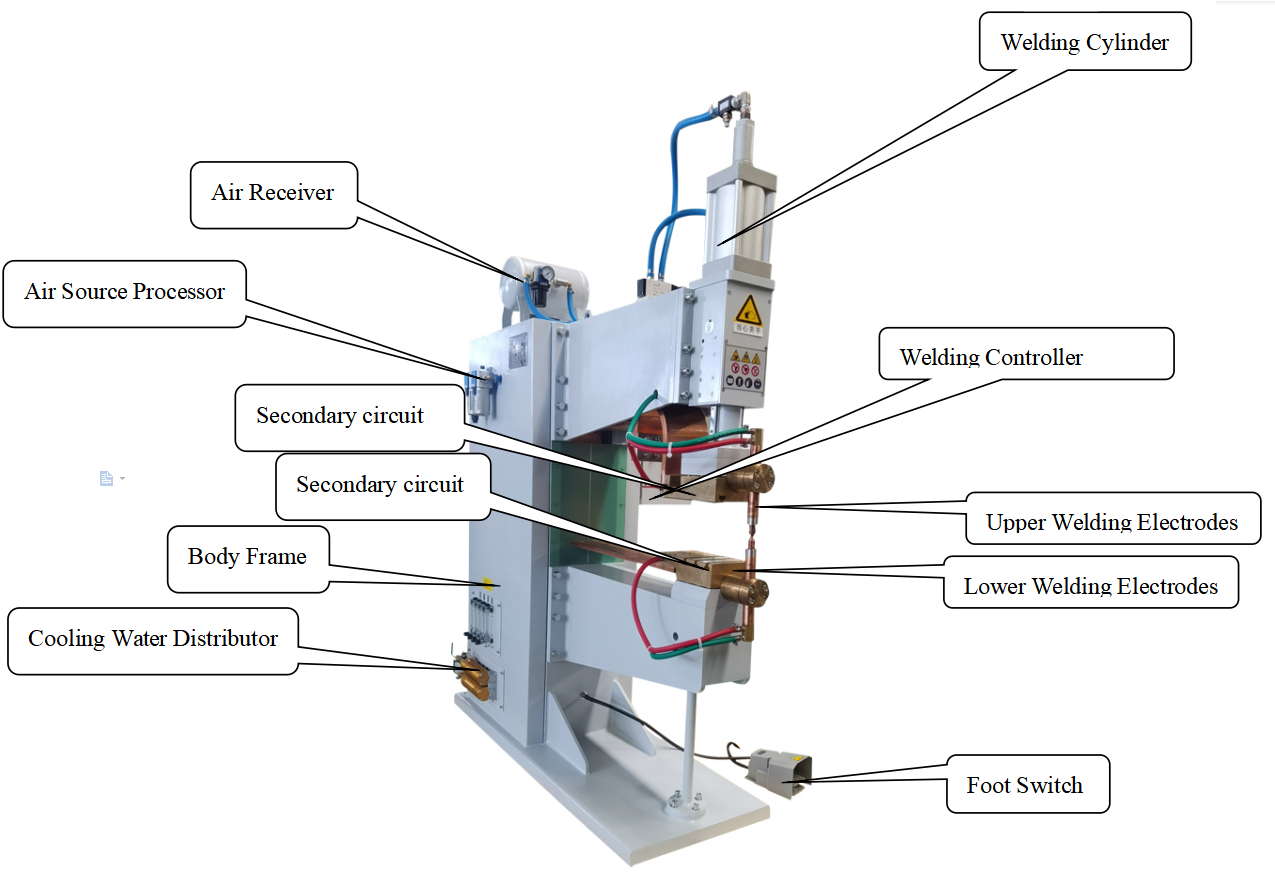

Product Structure

Working Environment and Conditions

Air source:the air source uses dry and clean compressed air with a pressure of 0.5-0.6MPa and a stable pressure.

Requirements for power supply network:voltage waveform shall be actual sine wave; the fluctuation of grid voltage shall not exceed ± 10% of the rated value; the fluctuation of power grid voltage frequency shall not exceed ± 1% of the rated value.

Images

Application







Frequently Asked Questions



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.



5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
